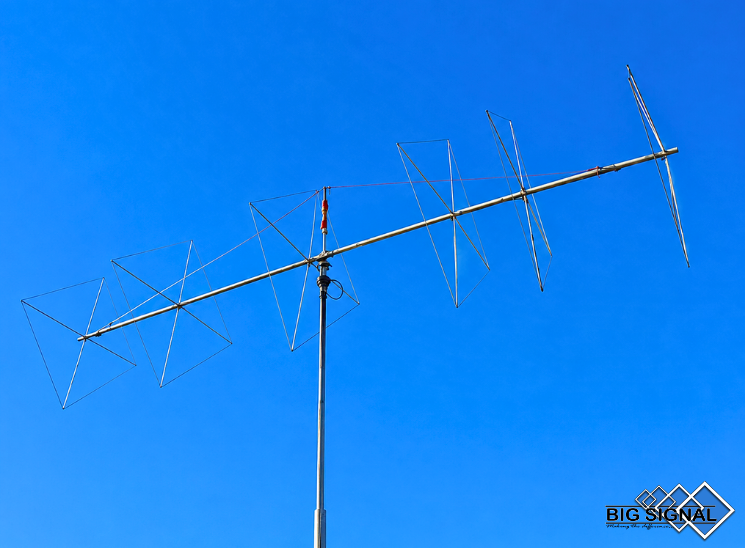

BIG SIGNAL 6BS-6
6-Element Cubical Quad for High-Performance DX on 50 MHz
6-Element Cubical Quad for High-Performance DX on 50 MHz
The BIG SIGNAL 6BS-6 is a 6-element single-band Cubical Quad antenna developed for operators looking for a high level of performance on the 50 MHz / 6-meter band.
Its combination of full-wave elements, high directivity, and closed-loop design makes it especially well suited for DX and weak-signal reception on one of the most exciting and demanding amateur radio bands.
Its combination of full-wave elements, high directivity, and closed-loop design makes it especially well suited for DX and weak-signal reception on one of the most exciting and demanding amateur radio bands.
Band: 50 MHz / 6 m
Configuration: Single-band Cubical Quad
Elements: 6 full-wave elements
Polarization: Horizontal
Recommended Use: DX / weak signals / high-performance stations
Configuration: Single-band Cubical Quad
Elements: 6 full-wave elements
Polarization: Horizontal
Recommended Use: DX / weak signals / high-performance stations
Key Features
• 6 Full-Wave Elements
Unlike the half-wave elements commonly used in many Yagi antennas, the 6BS-6 uses full-wave loops specifically optimized for the 50 MHz band.
Unlike the half-wave elements commonly used in many Yagi antennas, the 6BS-6 uses full-wave loops specifically optimized for the 50 MHz band.
• Designed for Serious DX
Its six elements provide a combination of gain and directivity aimed at long-distance communications, where every dB and every improvement in signal-to-noise ratio can make a real difference.
Its six elements provide a combination of gain and directivity aimed at long-distance communications, where every dB and every improvement in signal-to-noise ratio can make a real difference.
• High Gain with an Efficient Structure
The Cubical Quad geometry allows high performance while maintaining a reasonable boom length for the level of gain provided.
The Cubical Quad geometry allows high performance while maintaining a reasonable boom length for the level of gain provided.
• Weak-Signal Reception
Its closed-loop configuration can provide a favorable signal-to-noise ratio against certain types of electrical interference, an especially useful characteristic when searching for DX signals close to the reception threshold.
Its closed-loop configuration can provide a favorable signal-to-noise ratio against certain types of electrical interference, an especially useful characteristic when searching for DX signals close to the reception threshold.
• Excellent Directivity
Its radiation pattern concentrates energy in the desired direction while providing significant rejection of signals arriving from other directions, helping improve reception under difficult RF conditions.
Its radiation pattern concentrates energy in the desired direction while providing significant rejection of signals arriving from other directions, helping improve reception under difficult RF conditions.
• Greater Stability with Polarization Changes
Cubical Quad geometry can provide favorable behavior under certain changes in received-signal polarization, helping reduce the effects of QSB and fading during DX contacts.
Cubical Quad geometry can provide favorable behavior under certain changes in received-signal polarization, helping reduce the effects of QSB and fading during DX contacts.
• Built for Permanent Outdoor Installations
Designed with weather-resistant materials and a mechanical structure engineered to provide stability and long-term durability in permanent outdoor installations.
Designed with weather-resistant materials and a mechanical structure engineered to provide stability and long-term durability in permanent outdoor installations.
Designed to Make the Most of 6 Meters
The 50 MHz band can produce extraordinary propagation openings, but it can also deliver extremely weak signals and very short operating windows. Under these conditions, gain, directivity, and a strong signal-to-noise ratio become especially important.
The BIG SIGNAL 6BS-6 is designed precisely for this type of operation: stations that want to move beyond a basic antenna and step up to a high-performance directional system for DX and weak-signal work on 6 meters.
BIG SIGNAL 6BS-6 Advantages
• 6 full-wave elements optimized for 50 MHz.
• High gain and directivity for DX.
• Excellent performance for weak-signal operation.
• Closed-loop design with a favorable signal-to-noise ratio under certain conditions.
• Good rejection of side and rear signals.
• Rugged construction for permanent outdoor installations.
Six Elements to Go Farther on the Magic Band.
The BIG SIGNAL 6BS-6 is designed for operators who want to seriously explore the possibilities of 50 MHz: six full-wave elements, high directivity, and a configuration focused on achieving maximum performance in DX and weak-signal reception.
Technical Specifications
Band: 50 MHz / 6-Meter Band
Elements: 6 (long-spacing configuration)
Gain: 12.31 dBi (Free Space)
F/B Ratio: 30.1 dB
Polarization: Horizontal
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 7.15 m / 23.46 ft
Turning Radius: 3.69 m / 12.11 ft
Total Height: 2.1 m / 6.89 ft
Weight: 7 kg / 15.43 lb
Wind Survival: > 150 km/h / 93 mph
Elements: 6 (long-spacing configuration)
Gain: 12.31 dBi (Free Space)
F/B Ratio: 30.1 dB
Polarization: Horizontal
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 7.15 m / 23.46 ft
Turning Radius: 3.69 m / 12.11 ft
Total Height: 2.1 m / 6.89 ft
Weight: 7 kg / 15.43 lb
Wind Survival: > 150 km/h / 93 mph
Construction & Materials
• Boom-to-Mast Plate
Heavy-duty 150 x 100 x 8 mm / 5.91 x 3.94 x 0.31 in mounting plate, designed to provide a solid and secure connection between the boom and mast.
Heavy-duty 150 x 100 x 8 mm / 5.91 x 3.94 x 0.31 in mounting plate, designed to provide a solid and secure connection between the boom and mast.
• Boom
Square 40 x 2 mm / 1.57 x 0.08 in tubing, providing the structural rigidity required to support the six-element array and its 7.15 m / 23.46 ft overall boom length.
Square 40 x 2 mm / 1.57 x 0.08 in tubing, providing the structural rigidity required to support the six-element array and its 7.15 m / 23.46 ft overall boom length.
• Hardware & Fasteners
Made from W4-grade stainless steel, selected for high mechanical strength, corrosion resistance, and long-term durability in permanent outdoor installations.
Made from W4-grade stainless steel, selected for high mechanical strength, corrosion resistance, and long-term durability in permanent outdoor installations.
• Fiberglass Support System
12 x 7 mm / 0.47 x 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed to maintain its mechanical properties during long-term outdoor exposure.
12 x 7 mm / 0.47 x 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed to maintain its mechanical properties during long-term outdoor exposure.
• BIG SIGNAL Wire
Special copper wire with a polyethylene (PE) jacket, developed to provide excellent weather protection and high mechanical durability for long-term outdoor use.
Special copper wire with a polyethylene (PE) jacket, developed to provide excellent weather protection and high mechanical durability for long-term outdoor use.
• RF Feed
Direct 50 Ω terminal feed.
Direct 50 Ω terminal feed.
Designed for High-Performance Installations
With a 7.15 m / 23.46 ft boom, 12.31 dBi gain, and a 30.1 dB front-to-back ratio, the 6BS-6 is designed as a high-performance directional antenna for stations seriously dedicated to DX on 50 MHz.
12.31 dBi and 30.1 dB F/B to Get the Most from 6 Meters.
The BIG SIGNAL 6BS-6 combines six full-wave elements, rugged mechanical construction, and direct 50-ohm feeding in an antenna specifically developed for DX and weak-signal operation on the 50 MHz band.
Reviews
Write your review
The purchase of the products is always made on request. We manufacture all products, so manufacturing times can be added. That is why the final price of the purchase, as the final price of the shipping costs will be confirmed in an email sent afterwards.
The form of payment will be made once the email is received, so at all times you can cancel the order informing us of the process.
The antenna is more than A BEAST.
I have crossed North America to Mexico to caribean islands as Pj4, FG8 and WP4. Some North Africa countries then to FK8, VK8, YB, 9M2, XV1A and the JA mostly every day.
ALL THAT WITH 75 WATTS ONLY.
The performance of the antenna has surprised me a lot.
Regards to all,
3B9FR Robert
