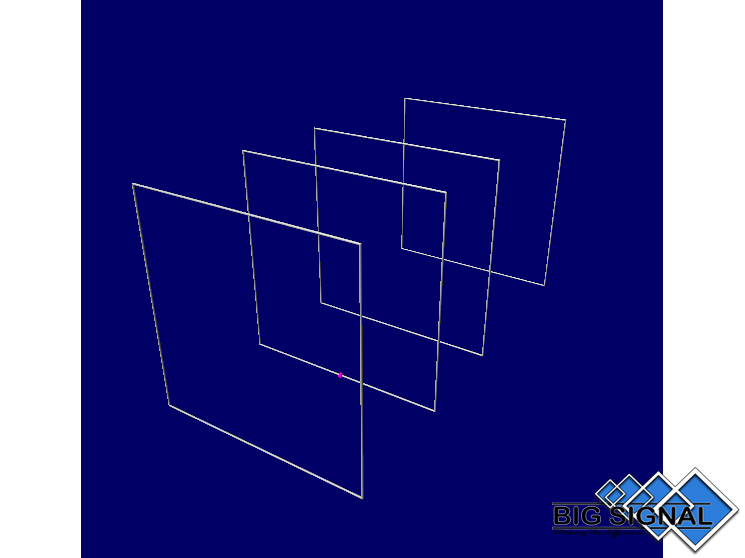

At BIG SIGNAL we have the latest generation in the design and development of Cubical Quad antennas for the 70 MHz / 4 m band.

Why choose the 4BS-4 antenna versus a traditional Yagui?

· Full wavelength antenna in 4 meters, achieving maximum performance and efficiency.
· More gain in less boom length than a traditional Yagi antenna.
· Noise reduction: Being a closed antenna, it will allow you to attenuate the QRM and improve the reception of weak signals in the band
· Very low radiation angle even installed at low altitude: This allows us to make fewer jumps until we reach the DX, resulting in a stronger signal on the other side.
· Very robust construction with high quality materials for extreme durability.

¡BIG SIGNAL - Make the difference!



Specifications:

· Band: 70 MHz.
· Active elements: 4.

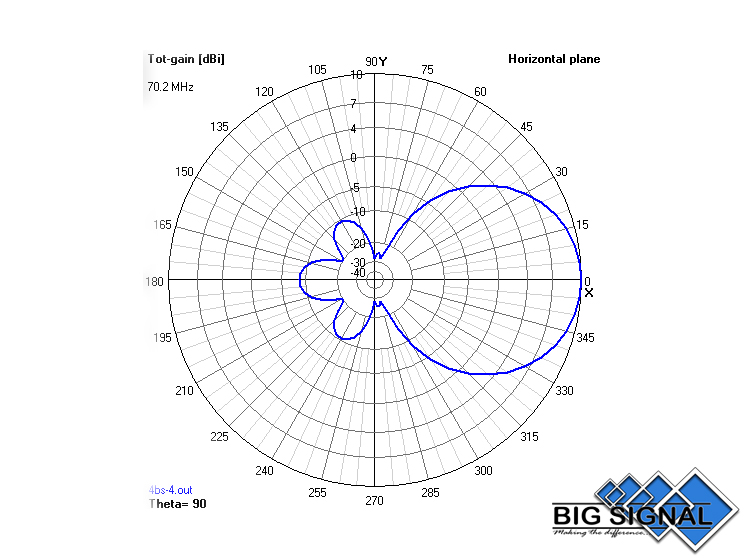

· Gain: 10,38 dBi (Free space).
· F/B: 20,27 dB.
· Polarization: Horizontal.
· SWR: 1,1:1 ~ 1,5:1.
· Impedance: 50 Ohm.
· Power rating: 5.000 W.
· Boom length: 2,14 m / 7,02 ft
· Turning radius: 1,28 m / 4,19 ft
· Total height: 1,4 m / 4,72 ft
· Weight: 5 Kg / 11,02 lb
· Wind survival: > 160 Km/h. / 100 mph


Construction details:

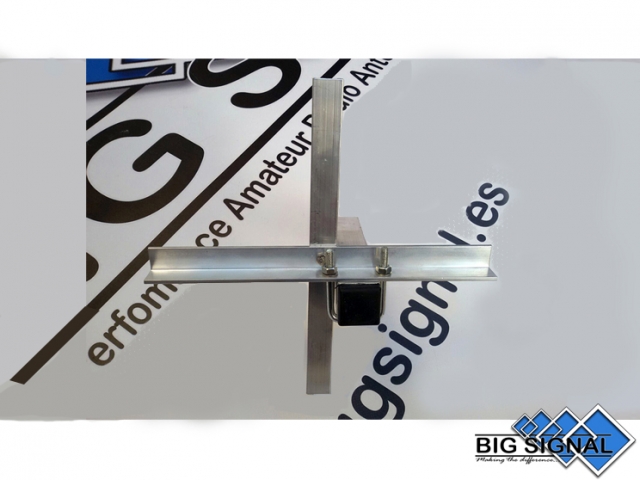

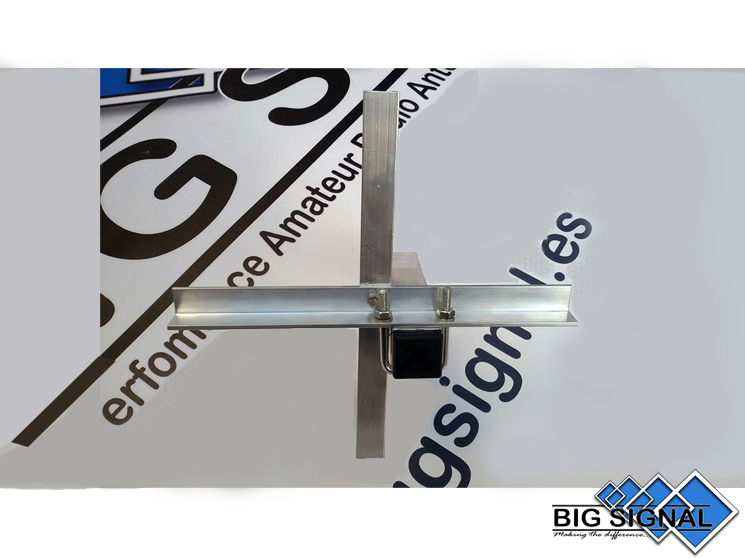

· Boom to Mast: 250 x 150 x 6 mm
· Boom size: 35 x 2 mm / 1,37 in
· Spiders: Angled design of 20 x 3 mm.
· Hardware: Stainless Steel, W4 grade.
· Spreaders Arms: 14 x 7 mm reinforced fiber cloth and protective layer for the sun.
· Cable: BIG SIGNAL - Wire. Special copper cable with polyethylene (PE) sheath for excellent weather protection and mechanical resistance.
· Feeding: Direct to 50 Ohm.
